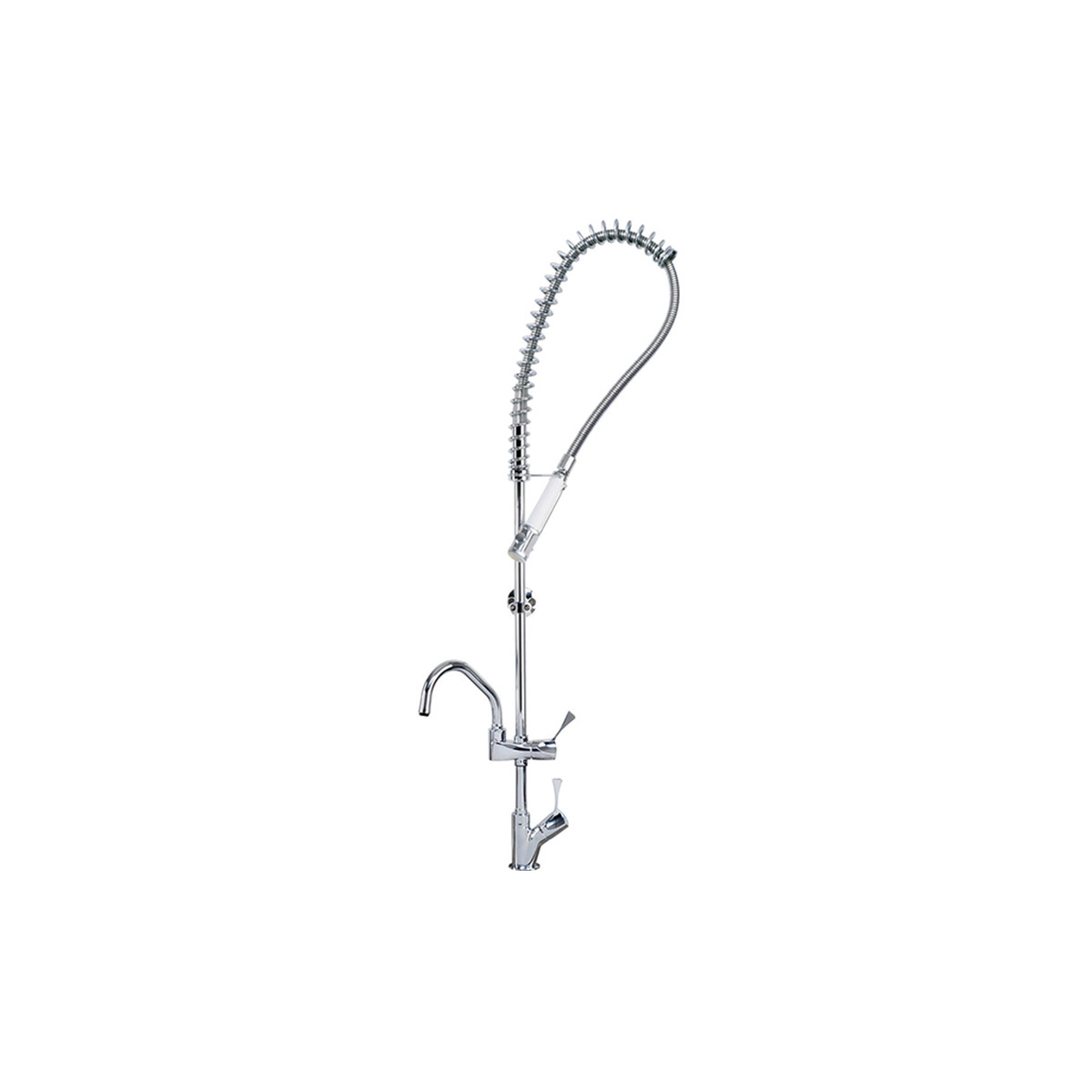

AquaTechnix TX-PR-10L-ST-BF1 Pre Rinse Spray Hose

Product Information:

AquaTechnix Pre-Rinse Spray. LEVER operated TX-PR-10L base / STANDARD height / BF1 bowl filler H: 1204mm

• Model range TX-10
• Base TX-PR-10L
• Height Standard
• Bowl filler 150mm bowl filler (BF1)
• Pedestal Single
• Mount Deck mounted
• Water feed Single Monobloc
• Controls Lever
• Connections 1/2-inch
• Accreditation WRAS

Features & Benefits:

• Ergonomic in design and functionality.
• Modern, hygienic and practical design comes pre-assembled ready to install.
• All assembled models are factory tested up to 6 bar for quality assurance.
• Complete interchangeability between all bodies, spouts and pre-rinses means that product use can easily be changed on site at a later date.
• Heavy-duty construction incorporating high quality tested and proven components for commercial use.
• Choice of height and bowl filler available.

Technical Info:

• Connection: 1/2-inch

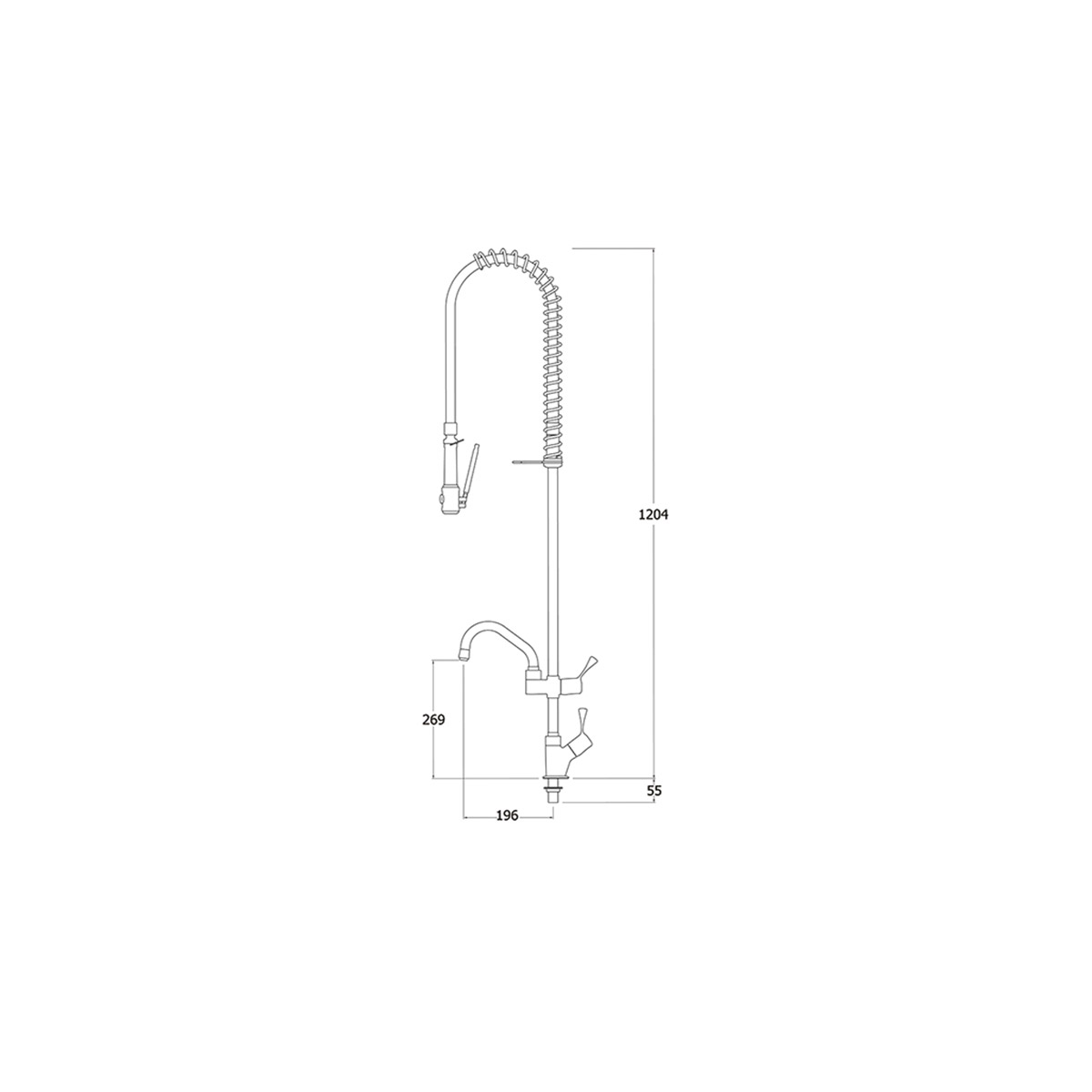

• Height: 1204mm
• Recommended static water pressure range: 1.5 – 5 bar
• Flow rates for all TX-PR-10 models – tested at 3 bar pressure: SPRAY GUN WATER-SAVING face plate: 4.11 l/m. SPRAY GUN STANDARD face plate: 10.33 l/m. BOWL FILLER WATER-SAVING diffuser: 3.82 l/m. BOWL FILLER STANDARD diffuser: 10.33 l/m. Water-saving diffuser for bowl filler available on request.
