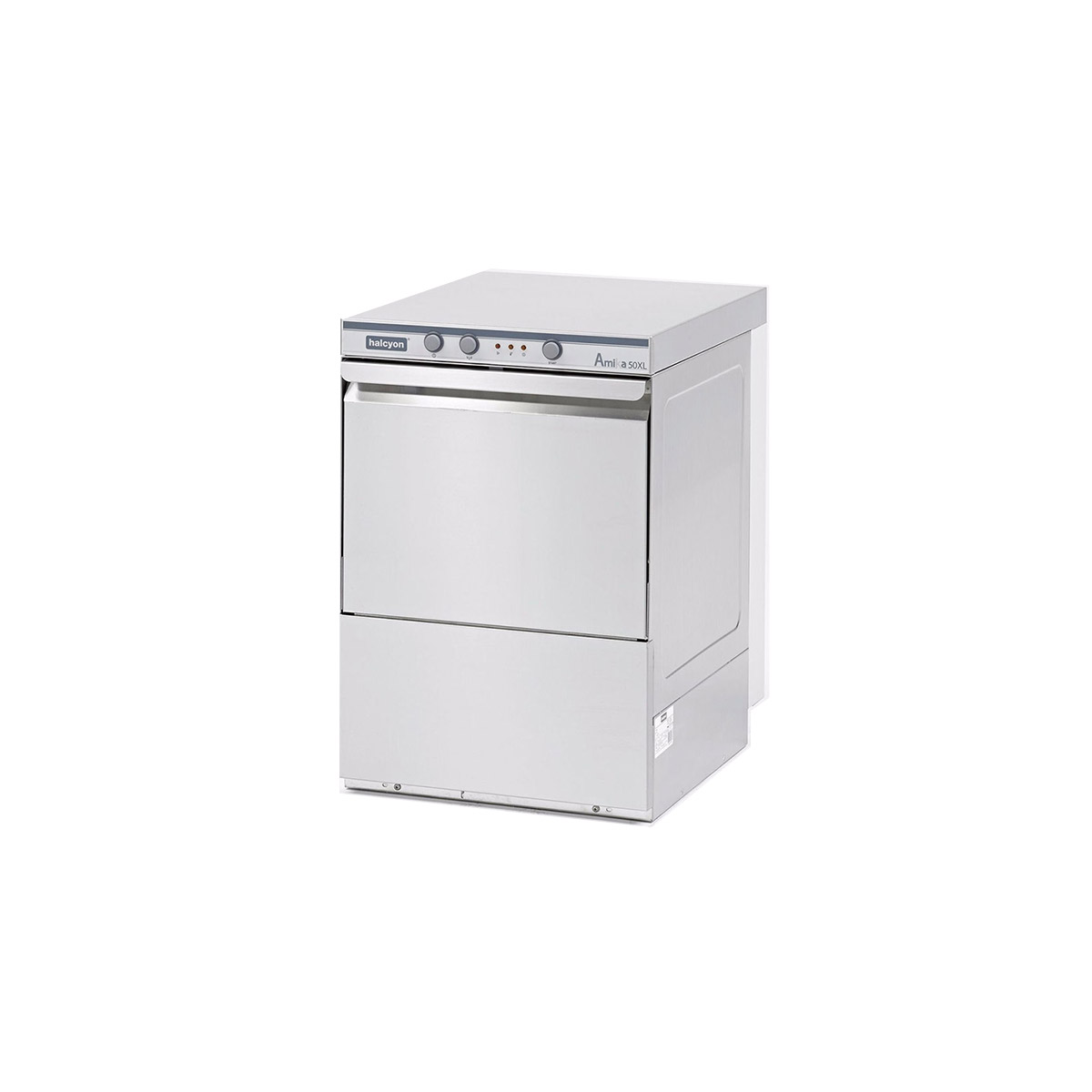

Maidaid Halcyon Amika Glasswasher
1 Year Warranty
Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.
-
Description
-
Reviews (0)
Key Points:
- Targeted model range to meet volume market requirements
- Designed for maximum energy and wash efficiency
- Wash tank designed to reduce water consumption
- Detergent and rinse aid dosing as standard
- Surface scrap tray kits available
- Gravity Drain
- Cycle times 90/120 sec
- Supplied with two open glass racks
- Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
- Machines fitted to cold water supplies will not be capable of running repeated short cycles.
- The cycle time will automatically be extended to allow recovery of correct operating temperatures
- Wash temperature 60°C
- Rinse temperature 65°C
Technical Data:
| Amika | AMH50 |
|---|---|
| Width x Depth x Height mm | 580 x 605 x 815 |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 325mm |
| Door Opening | 365mm |
| Cycle times | 90/120 Seconds |
| Water consumption per cycle | 2.8 Litres |
| Wash tank capacity | 20 Litres |
| Phase – Options | Single/3-Phase |
| Power – Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power – Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic |
| Rinse aid pump | Peristaltic |
| Drain pump | No |
| Breaktank | No |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Partial Double Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Optional |
| Internal Rinse Booster Pump | N/A |
| Number Of Cycles | 2 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) – Single Phase |
