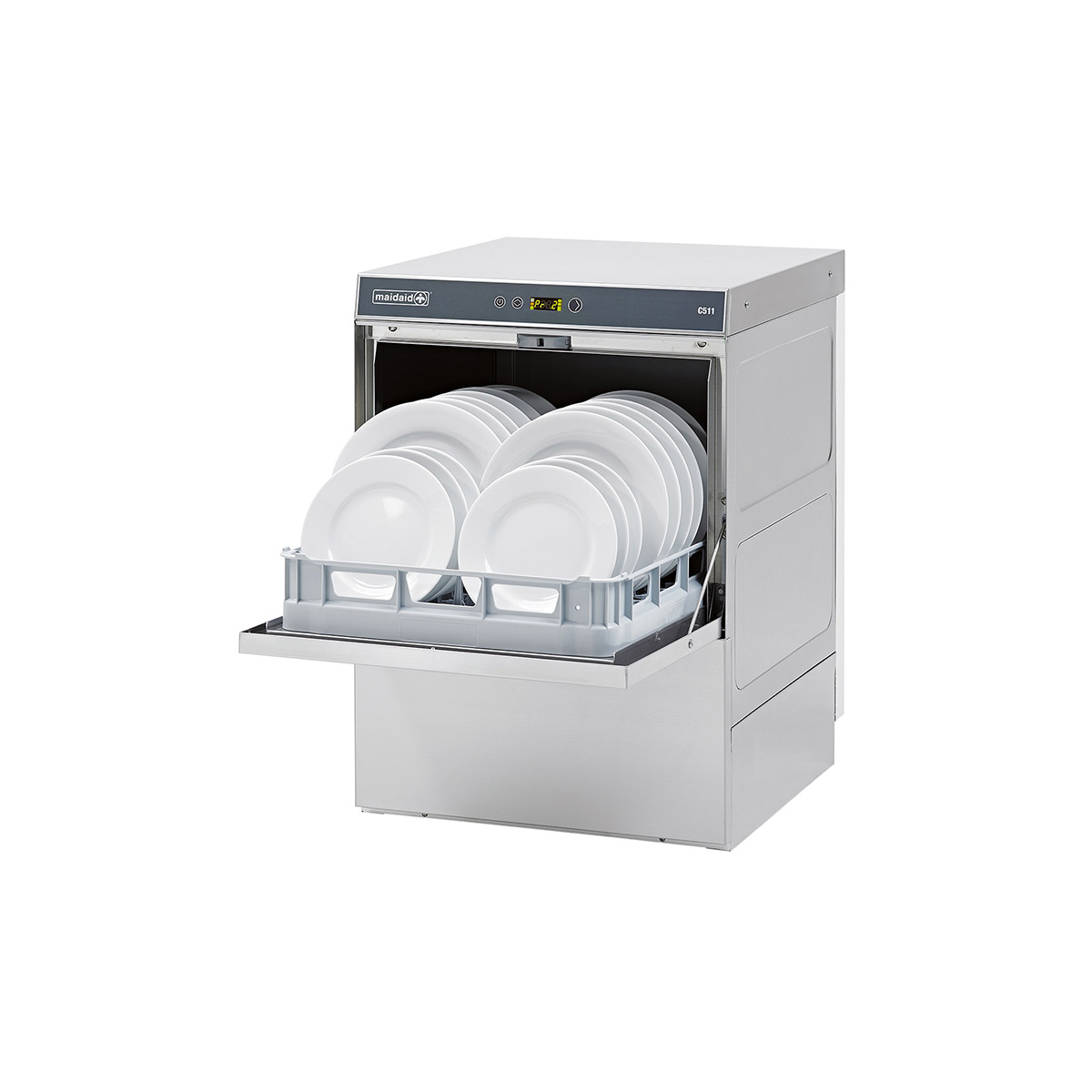

Maidaid Halcyon Dishwasher C511

£ 2,039.99 inc. VAT

1 Year Parts & Labour Warranty

SKU: C511 Categories: , ,

Key Points:

  • 2 year warranty
  • Type AA breaktank
  • Bright LED display with soft touch panels
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Supplied with one pegged and one open basket
  • Three selectable cycle options plus special application cycle options
  • Cycle times between 70 & 240 secs, including special cycles
  • Cycle times can be tailored to site requirements
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Automatic self-cleaning at end of service
  • Surface scrap tray filters
  • Operational self diagnostics
  • Twin traffic light display indicate machine status
  • Drain pump optional
  • Partial double skinned reducing noise and heat loss
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 78°C (adjustable)



Technical Data:

C Range – UndercounterC511
Width x Depth x Height mm580x610x815mm
Feet Height10mm-20mm
Basket size500x500mm
Maximum useable height320mm
Door Opening365mm
Cycle times70/120/150 Seconds
Water consumption per cycle2.5 Litres
Wash tank capacity20 Litres
Phase – OptionsSingle/3-Phase
Power – Single Phase Options2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase6.5kW(16Amp)
Detergent pumpPeristaltic – non timed
Rinse aid pumpPeristaltic – non timed
Drain pumpOptional
BreaktankYes
Water supply pressure2 to 4 Bar
Body ConstructionPartial Double Skin
Door/Hood ConstructionDouble Skin
Scrap TraysYes
Internal Rinse Booster PumpYes
Number Of Cycles4
Total Maximum Load(as supplied)6.5kW(30Amp) – Single Phase
