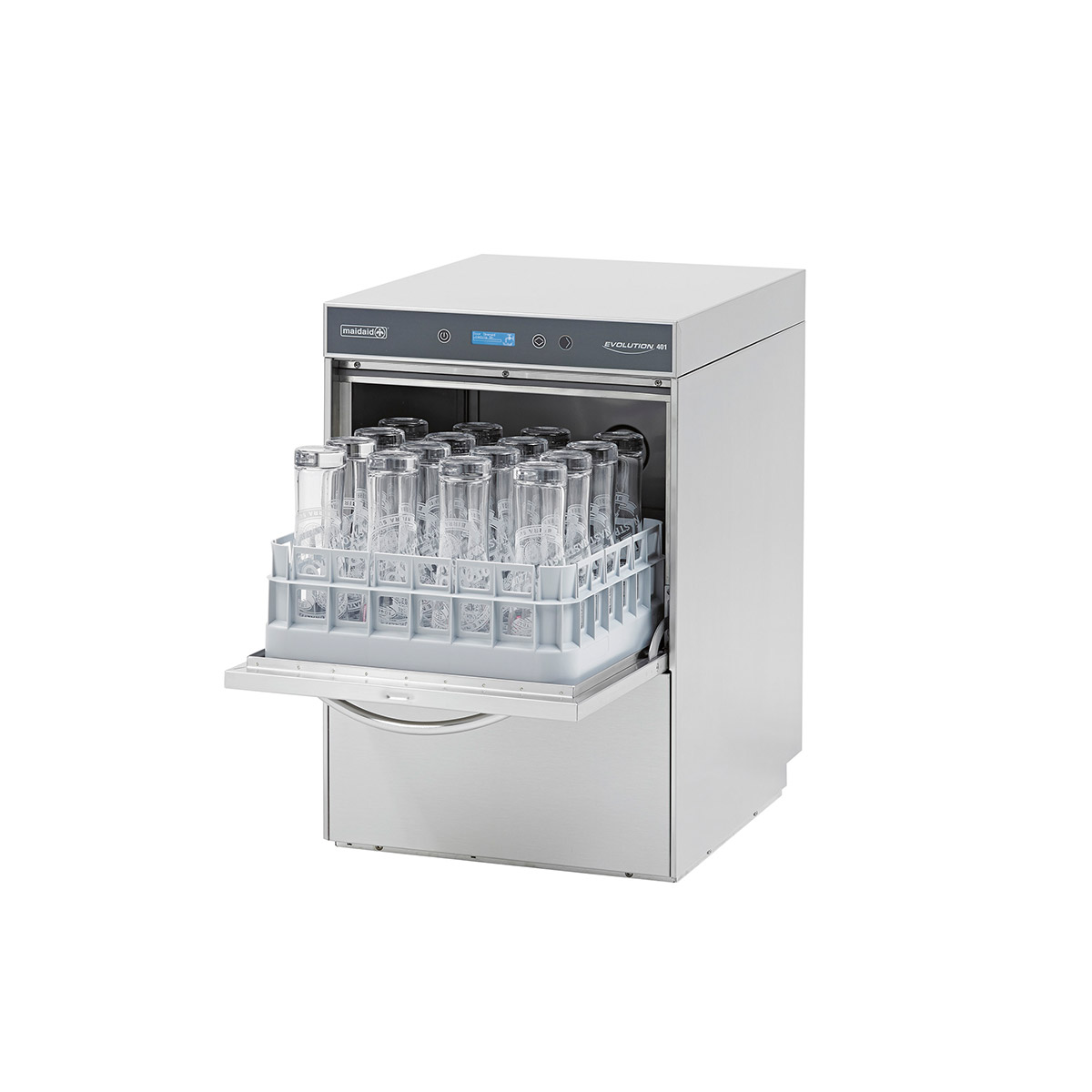

Maidaid Halcyon Evolution Glasswasher EVO402

£ 2,279.99 inc. VAT

1 Year Warranty

Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.

SKU: EVO402 Categories: , , ,

Key Points:

  • 2 year warranty
  • NEW polychromatic LCD display and user interface giving uncomplicated machine status updates
  • NEW four button control fascia with a special programs button
  • NEW cycle give a complete refresh of the wash water
  • Designed for the most demanding environments
  • Reduced water consumption
  • Double skinned misimising both acoustic output and reduced heat loss
  • Breaktank as standard
  • Drain pump as standard
  • Surface scrap tray filters supplied as standard
  • Improved triple wash tank filtration system
  • Detergent and rinse aid delivered by precise peristaltic pumps
  • Priming and dosing of chemicals enabled from fascia controls
  • Supplied with two open cup/glass racks
  • Hi-level information retrieval to aid both installation and service technicians
  • Three standard cycle options
  • Extensive range of special cycles
  • PLATES cycle automatically changes parameters to suit plate washing
  • Comprehensive automatic self-cleaning cycle
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 65°C (adjustable) 78°C when PRO plates cycle selected



Technical Data:

Evo – UndercounterEvo402
Width x Depth x Height mm465 x 560 x 690mm
Feet Height5mm-15mm
Basket size400×400
Maximum useable height295mm
Door Opening320mm
Cycle times90/120/150 Seconds
Water consumption per cycle1.1 Litres
Wash tank capacity8 Litres
Phase – OptionsSingle Phase Only
Power – Single Phase Options2.8kW(13Amp)
Power – Three PhaseN/A
Detergent pumpPeristaltic-Non Timed
Rinse aid pumpPeristaltic-Non Timed
Drain pumpYes
BreaktankYes
Water supply pressure2 to 4 Bar
Body ConstructionDouble Skin
Door/Hood ConstructionDouble Skin
Scrap TraysYes
Internal Rinse Booster PumpYes
Number Of Cycles5
Total Maximum Load(as supplied)2.8kW(13Amp) Single Phase
