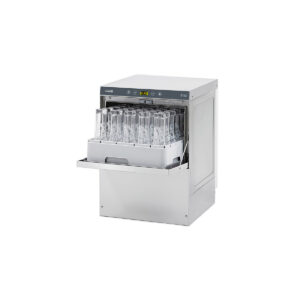

Maidaid Halcyon Evolution Glasswasher
1 Year Warranty
Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.
-
Description
-
Reviews (0)
Key Points:
- 2 year warranty
- Full LCD display and user interface giving uncomplicated machine status updates
- Designed for the most demanding environments
- Type AA breaktank
- Double skinned minimising both acoustic output and reduced heat loss
- Internal continuous water softener
- Low water consumption
- Three standard cycle options
- Cycle times between 90 & 715 secs, including special cycles
- Extensive range of special cycle options
- Plates cycle automatically changes parameters to suit plate washing
- LONG cycle for intensive wash or for glass renovation
- STEEL cycle for best results when washing cutlery
- Detergent and rinse aid delivery by precise peristaltic pumps
- Priming and dosing of chemicals enabled from fascia controls
- Comprehensive automatic self-cleaning cycle
- Drain pump as standard
- Surface scrap trays as standard
- Hi-level information retrieval to aid both installation and service technicians
- Supplied with two open cup/glass racks
- Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
- Machines fitted to cold water supplies will not be capable of running repeated short cycles.
- The cycle time will automatically be extended to allow recovery of correct operating temperatures
- Can be supplied 3 phase
- Wash temperature 60°C (adjustable)
- Rinse temperature 65°C (adjustable) 78°C when PRO plates cycle selected
Technical Data:
| Evo – Undercounter | Evo505WS |
|---|---|
| Width x Depth x Height mm | 600 x 605 x 715mm |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 250mm |
| Door Opening | 290mm |
| Cycle times | 72/110/150 Seconds |
| Water consumption per cycle | 1.9 Litres |
| Wash tank capacity | 15 Litres |
| Phase – Options | Single/3-Phase |
| Power – Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power – Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic-Non Timed |
| Rinse aid pump | Peristaltic-Non Timed |
| Drain pump | Yes |
| Breaktank | Yes |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Double Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Yes |
| Internal Rinse Booster Pump | Yes |
| Number Of Cycles | 6 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) – Single Phase |
