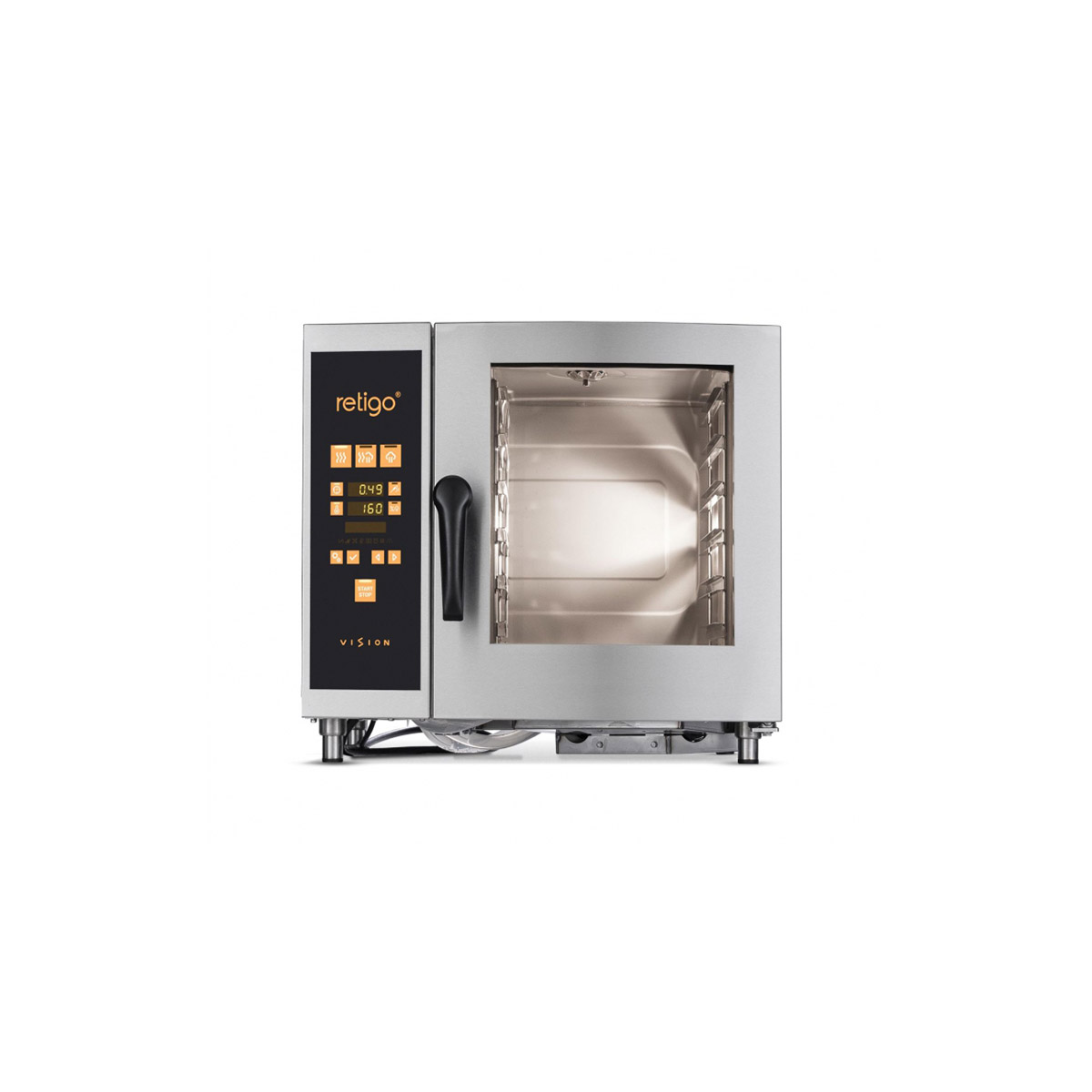

Retigo Orange Vision 6x Grid Combination Oven O623i

£ 3,156.00£ 3,576.00 ex VAT

SKU: O623i Categories: , , ,

The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the amount of functions in the basic configuration, but with emphasis on high quality and easy control. As opposed to the model series Blue Vision, Orange Vision combi ovens are equipped only with an automatic cleaning system and essential basic functions. Optional equipment includes an integrated shower, a flap valve and 99 programs with 9 steps. The customer thus has the option of configuring his machine based on needs and not to pay for something he will never use. The elegant functional design underscores the simplicity of devices, the LED display enables easy settings and control.

Retigo Vision 623 combi ovens are ideal for operations serving up to 50 portions per day. The gastronorm container size is GN 2/3 (354×325 mm). These combi ovens can be installed on a standard stand, on a wall-mounted console, or right on a table. The steam generation system is by injection only. The heat source is electricity.

FEATURES & BENEFITS

COOKING

  • Hot air 30 – 300 °C
  • Combination 30 – 300 °C
  • Steaming 30 – 130 °C
  • Bio steaming 30 – 98 °C
  • Overnight cooking – Saves time and money.
  • Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
  • Crosswise racks – Safer and comfortable GN handling. Better product visual control.
  • Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
  • Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.
  • Sous-vide, Drying, Sterilization, Confit, Smoking – Great way to make your menu special.

 VISION TOUCH CONTROLS

  • Touch panel – Panel works under all conditions and has a fast response, no mechanical elements, buttons, or wheels.
  • Automatic start – The ability to schedule a delayed start.
  • Continuous cooking time option – Saves your time during busy operations.

















OTHER EQUIPMENT

  • Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
  • Double glazed door glass – Advanced energy savings and external glass that does not burn you.
  • Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
  • Massive door handle – Comfortable and safe handling with silver ion material contains for bacteria reduction.
  • AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
  • Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
  • Run-off tray under the door – No slipping on the wet floor.
  • Two water inlets – Saves a water treatment unit‘s capacity.
  • WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
  • Removable GN holders with 65 mm spacing.

 CONNECTIVITY

  • USB plug-in – Transfer useful data easily to and from the combi oven.
  • VisionCombi software – Program and pictogram management in your PC, HACCP data view.

 OPERATION LOGS

  • HACCP records – Easy and immediate analysis of critical cooking points.
  • Complete operating records

 SERVICE

  • SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

TECHNICAL DATA:

Model O 623 i
Technical specification 2E0623IZ
Energy Electricity
Steam generation Injection
Capacity 6 x GN2/3
Capacity of meals 30-50
Spacing 65 mm
Dimensions (w x h x d)  683 x 602 x 586 mm
Weight 62 kg
Total power 5 (3,4*) kW
Heat power 4,8 (3,2*) kW
Fuse protection 16 A
Voltage 3N~/400V/50-60Hz
Noise level max. 70 dBA
Water/Drain connection G 3/4” / 40
Temperature 30 – 300 °C

 * valid for voltage 1N~/230V/50-60Hz

Stand Options

None, Stainless Steel Stand, Stainless Steel Stand With Wheels
