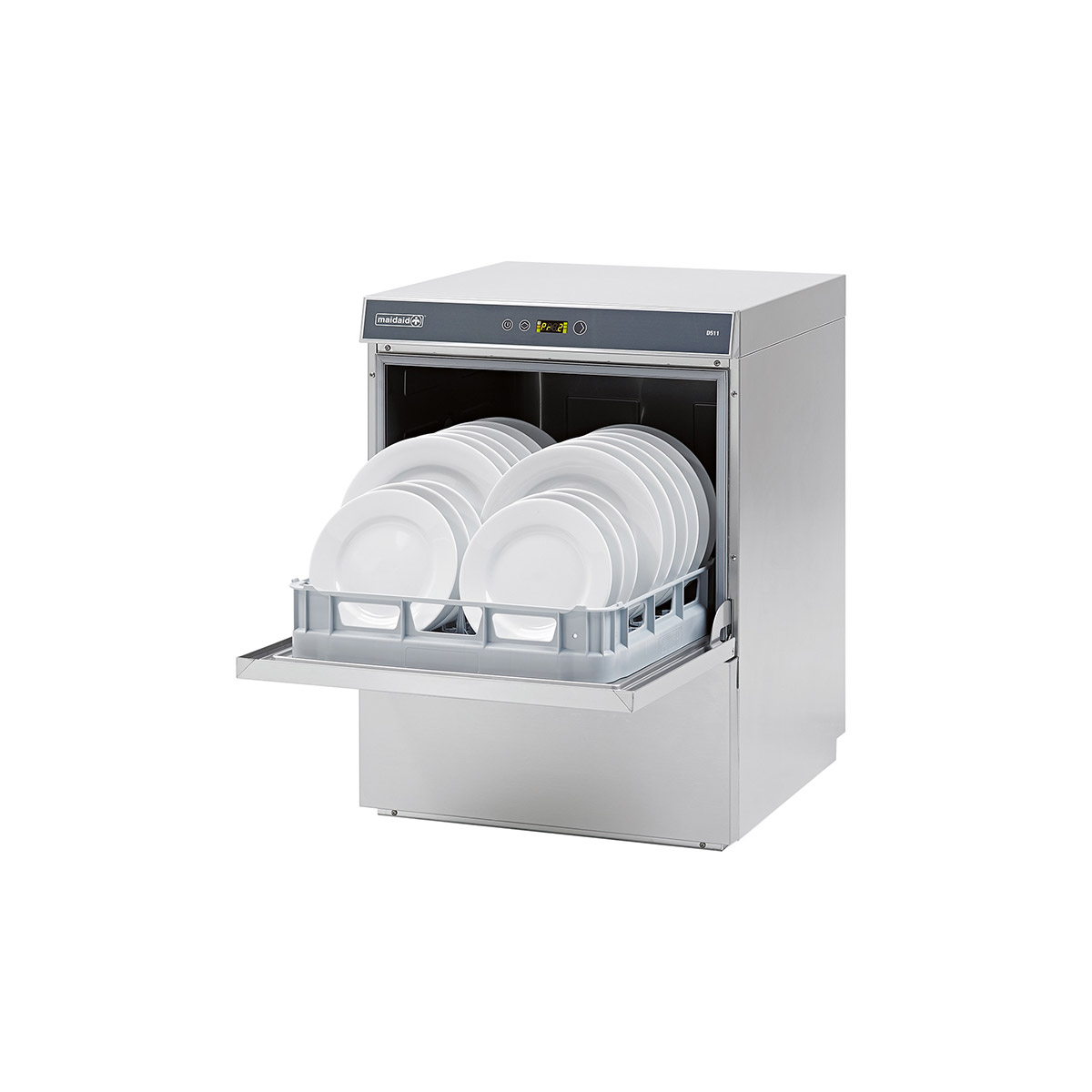

Maidaid Halcyon Dishwasher
1 Year Warranty
Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.
-
Description
-
Reviews (0)
Key Points:
- 2 year warranty
- Type AA breaktank
- Drain pump fitted as standard
- Moulded wash tank designed for easy cleaning and reduced water usage
- Low running costs due to improved rinse efficiency
- Surface scrap trays as standard
- Soft touch control with bright LED display
- Twin traffic light display indicates machine status
- Accurate detergent and rinse aid peristaltic dosing as standard
- Three selectable cycle options plus special application cycles option
- Cycle times between 70 & 240 secs, including special cycles
- Selectable cycle to change operation for glass washing
- Selectable GLASS cycle for glass washing
- Selectable GREEN cycle for minimum energy usage
- Automatic self cleaning cycle
- Full double skinned for noise and reduced heat
- One open/cup, one pegged rack and cutlery insert as standard
- Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
- Machines fitted to cold water supplies will not be capable of running repeated short cycles.
- The cycle time will automatically be extended to allow recovery of correct operating temperatures
- Wash temperature 60°C (adjustable)
- Rinse temperature 78°C (adjustable)
Technical Data:
| D Range – Undercounter | D511 |
|---|---|
| Width x Depth x Height mm | 600 x 605 x 815mm |
| Feet Height | 10mm-20mm |
| Basket size | 500x500mm |
| Maximum useable height | 355mm |
| Door Opening | 390mm |
| Cycle times | 70/110/150 Seconds |
| Water consumption per cycle | 2.3 Litres |
| Wash tank capacity | 15 Litres |
| Phase – Options | Single/3-Phase |
| Power – Single Phase Options | 2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp) |
| Power – Three Phase | 6.5kW(16Amp) |
| Detergent pump | Peristaltic-non timed |
| Rinse aid pump | Peristaltic-non timed |
| Drain pump | Yes |
| Breaktank | Yes |
| Water supply pressure | 1 to 4 Bar |
| Body Construction | Double Skin |
| Door/Hood Construction | Double Skin |
| Scrap Trays | Fully Deep Drawn |
| Internal Rinse Booster Pump | Yes |
| Number Of Cycles | 5 |
| Total Maximum Load(as supplied) | 6.5kW(30Amp) – Single Phase |
