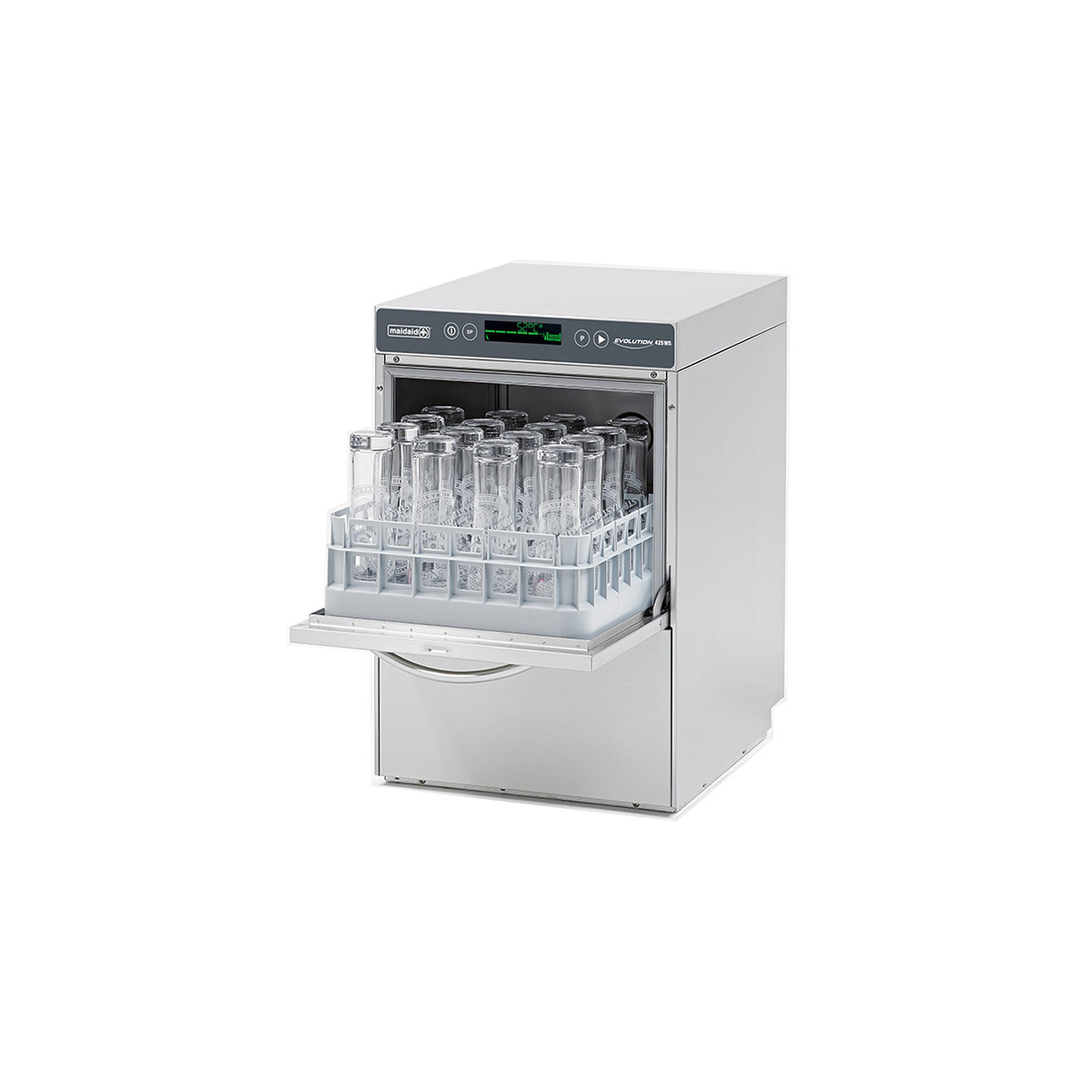

Maidaid Halcyon Evolution Glasswasher

1 Year Warranty

Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.

SKU: EVO425WS Categories: , ,

Key Points:

  • 2 year warranty
  • NEW polychromatic LCD display and user interface giving uncomplicated machine status updates
  • NEW four button control fascia with a special programs button
  • NEW cycle give a complete refresh of the wash water
  • NEW improved levels of water hardness selection
  • Designed for the most demanding environments
  • Reduced water consumption
  • Double skinned misimising both acoustic output and reduced heat loss
  • Breaktank as standard
  • Drain pump as standard
  • Surface scrap tray filters supplied as standard
  • Improved triple wash tank filtration system
  • Internal continuous water softener
  • Detergent and rinse aid delivered by precise peristaltic pumps
  • Priming and dosing of chemicals enabled from fascia controls
  • Supplied with two open cup/glass racks
  • Hi-level information retrieval to aid both installation and service technicians
  • Three standard cycle options
  • Extensive range of special cycles
  • PLATES cycle automatically changes parameters to suit plate washing
  • Comprehensive automatic self-cleaning cycle
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 65°C (adjustable) 78°C when PRO plates cycle selected



Technical Data:

Evo – Undercounter Evo425WS
Width x Depth x Height mm 465 x 560 x 690mm
Feet Height 5mm-15mm
Basket size 400×400
Maximum useable height 295mm
Door Opening 320mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.1 Litres
Wash tank capacity 8 Litres
Phase – Options Single Phase Only
Power – Single Phase Options 2.8kW(13Amp)
Power – Three Phase N/A
Detergent pump Peristaltic-non timed
Rinse aid pump Peristaltic-non timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 5
Total Maximum Load(as supplied) 2.8kW(13Amp) Single Phase
