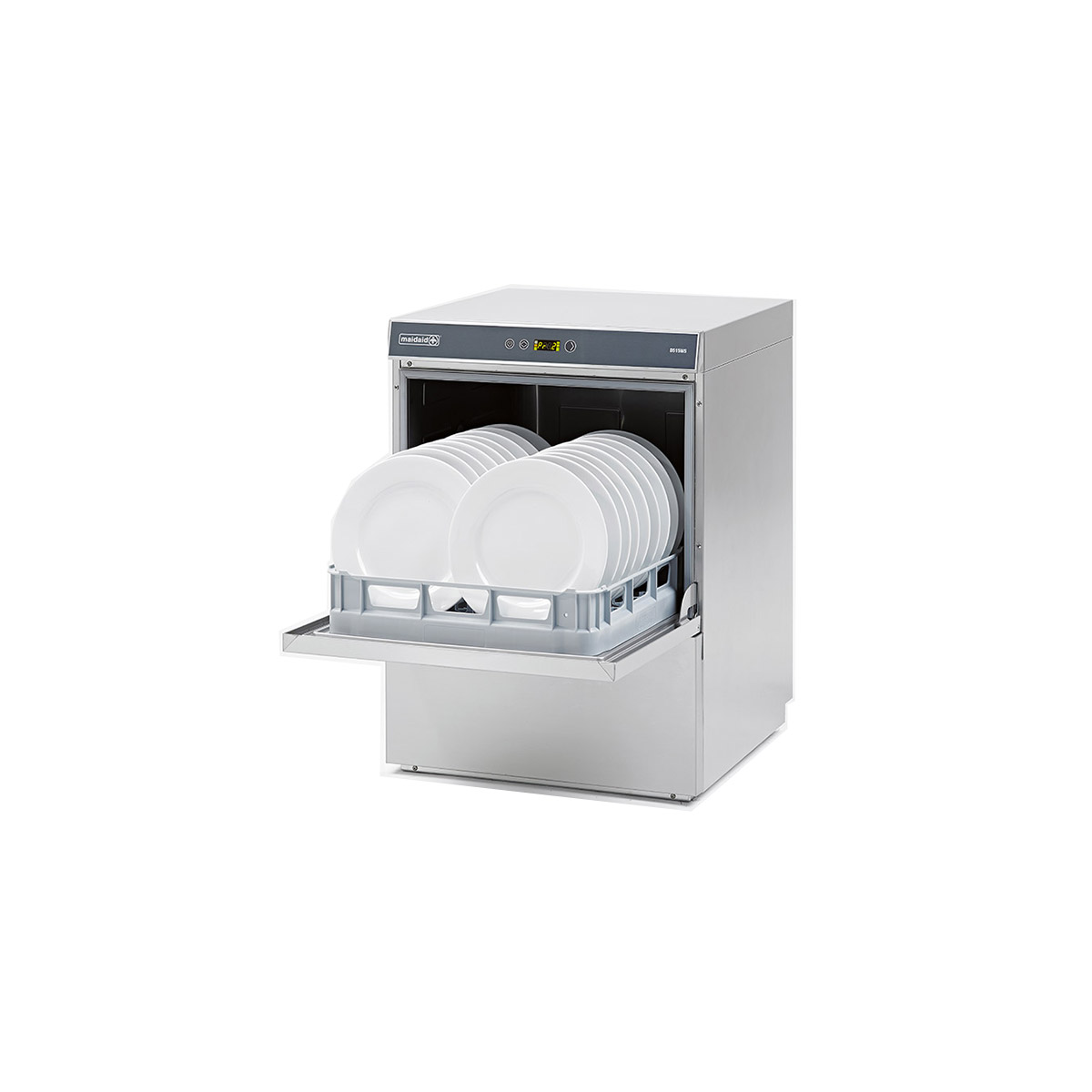

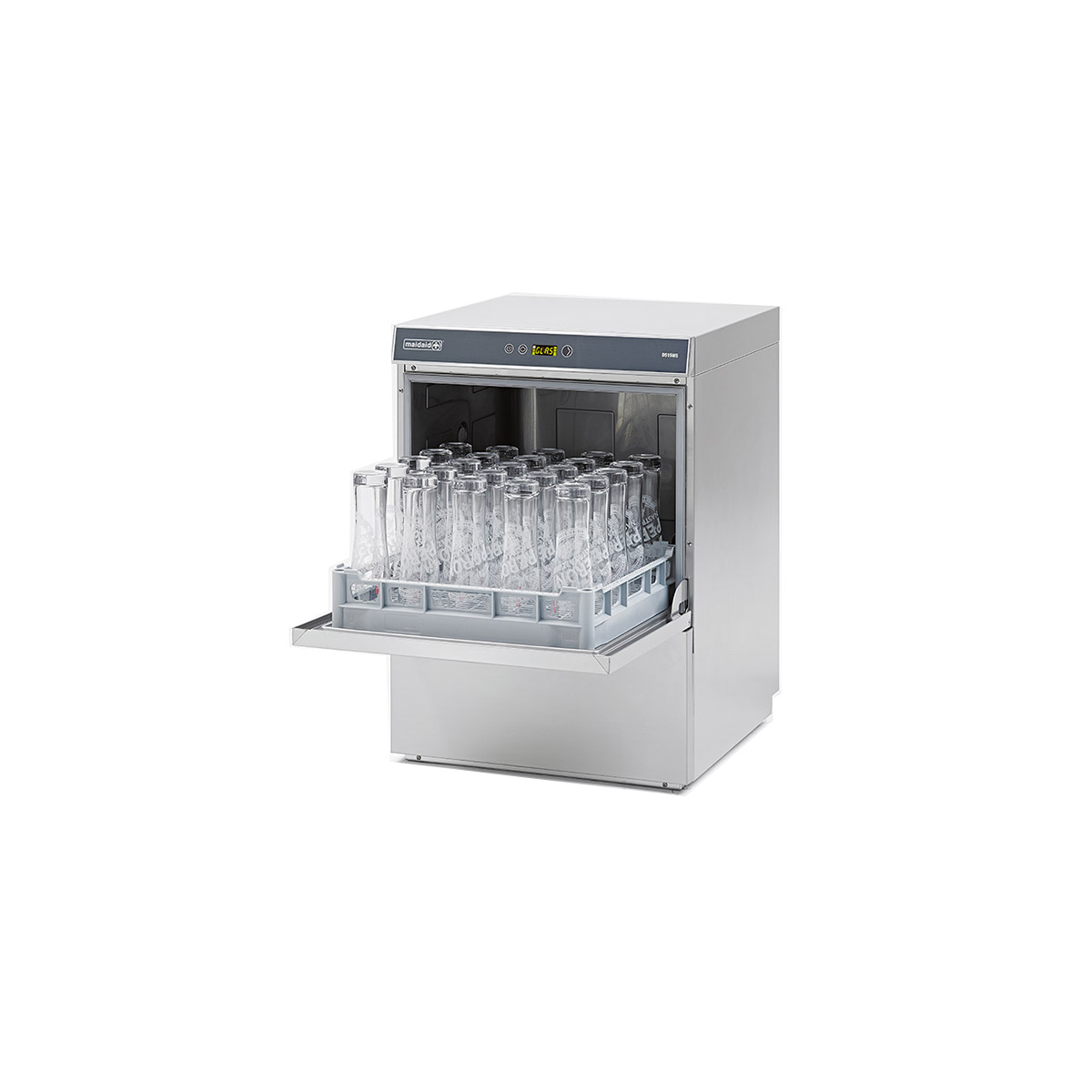

Maidaid Halcyon Dishwasher D515 WS

£ 2,499.99 ex VAT

1 Year Parts & Labour Warranty

SKU: D515 WS Categories: , , ,

Key Points:

  • 2 year warranty
  • D Range targeted at volume market requirements
  • Internal automatic water softener
  • Drain pump fitted as standard
  • Wash tank designed to reduce water usage
  • Low running costs due to improved rinse efficiency
  • Surface scrap trays as standard
  • Soft touch control with bright LED display
  • Twin traffic light display indicates machine status
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Three selectable cycle options plus special application cycles options
  • Cycle times between 70 & 240 secs, including special cycles
  • Selectable cycle to change operation for plate washing
  • Selectable PRO LONG cycle for super intensive wash or for glass renovation
  • Automatic self cleaning cycle
  • Full double skinned for noise and reduced heat loss
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 78°C (adjustable)



Technical Data:

D Range – Undercounter D515WS
Width x Depth x Height mm 600 x 605 x 815mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 360mm
Door Opening 390mm
Cycle times 70/110/150 Seconds
Water consumption per cycle 2.3 Litres
Wash tank capacity 15 Litres
Phase – Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic-non timed
Rinse aid pump Peristaltic-non timed
Drain pump Yes
Breaktank Yes
Water supply pressure 1 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Fully Deep Drawn
Internal Rinse Booster Pump Yes
Number Of Cycles 6
Total Maximum Load(as supplied) 6.5kW(30Amp) – Single Phase
