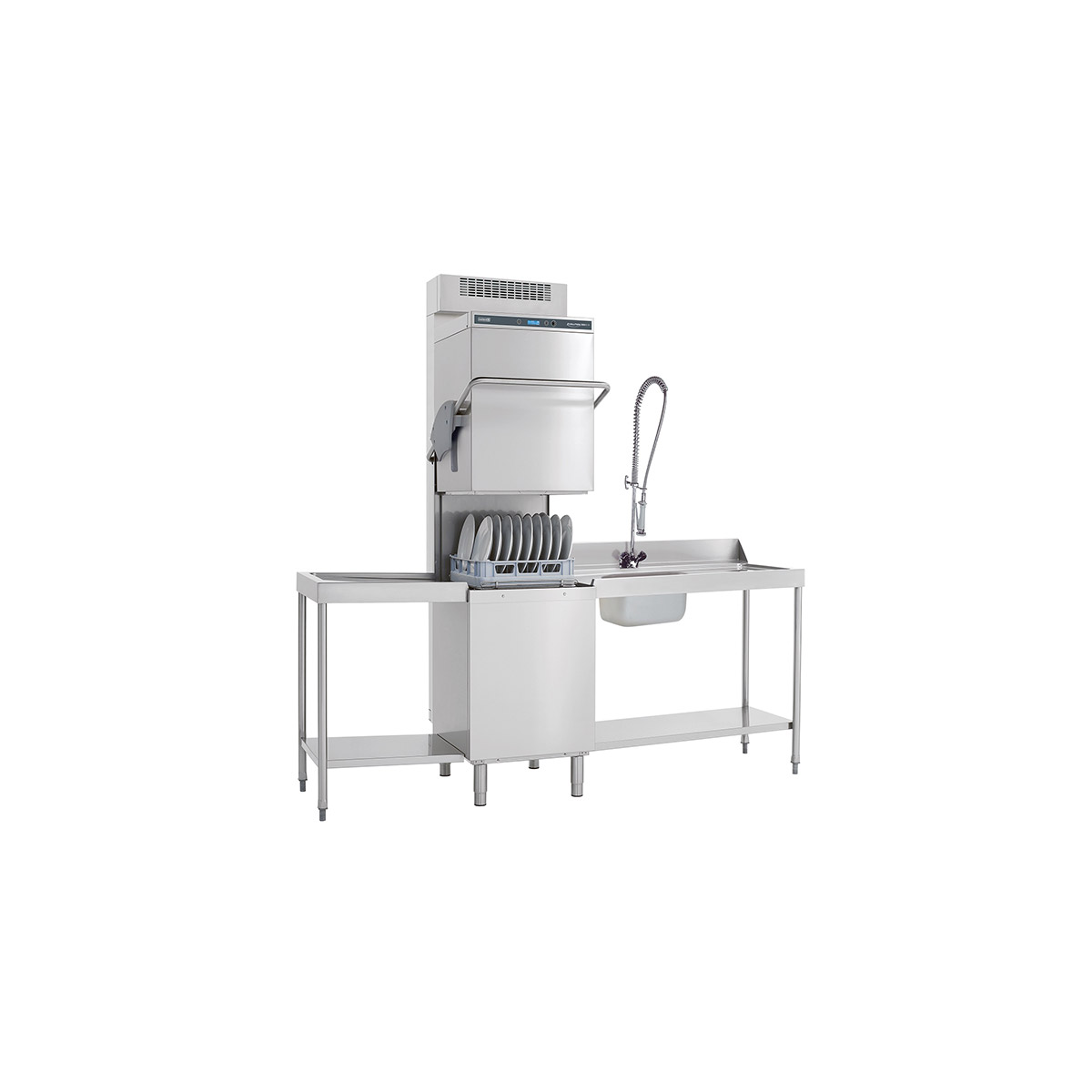

Maidaid Halcyon Evolution Passthrough Dishwasher Evolution 2135 WS HR

£ 7,448.39 inc. VAT

2 Year Warranty

Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.

SKU: Evolution 2135 WS HR Categories: , ,

Key Points:

  • 2 year warranty
  • Up to 25% less power required to heat rinse water
  • HR module supplied seperately with simple bolt on instructions
  • Reduces need for extraction hood and improves working environments
  • Internal continuous water softener
  • Super glide hood for ease of use
  • Full LCD display and user interface giving uncomplicated machine status updates
  • Detergent and rinse aid delivery by precise peristaltic pumps
  • Priming and dosing of chemicals enabled from fascia controls
  • Type AA breaktank
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Drain pump fitted as standard
  • Patented DUAL flow wash pump, reduced power while retaining wash efficiency
  • Three selectable cycle options plus special application cycles options
  • Cycle times between 90 & 715 secs, including special cycle
  • ACT extremely instensive cycle for the dirtiest products by running two complete cycles
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Comprehensive automatic self-cleaning cycle
  • Surface scrap tray filters
  • Operational self-diagnostics
  • Cycle times can be tailored to sit requirements
  • GLASS cycle automatically changes parameters to suit glass washing
  • SANITISING cycle balances wash time and temperatures to achieve a standard rating of AO 30
  • LONG cycle for intensive wash of for glass renovation
  • GREEN cycle for economy, reduces water consumption and operates with lower temperatures
  • Supplied with one open, one pegged plate rack and cutlery basket
  • Suitable for cold water supply only at 2 to 4 bar dynamic supply pressure – cannot be used with hot water supply
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 78°C (adjustable)
  • Can be supplied 3 phase


Technical Data:

Evolution Hood RangeEvolution2035WS+HR
Width x Depth x Height mm635 x 755 x 2070mm
Feet Height165mm to 220mm
Basket size500 x 500mm
Maximum useable height440mm
Door Opening475mm
Cycle times60/90/120 Seconds
Water consumption per cycle2.3 Litres
Wash tank capacity20 Litres
Phase – OptionsSingle/3-Phase
Power – Single Phase Options4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase6.7kW(16Amp)
Detergent pumpPeristaltic – Non Timed
Rinse aid pumpPeristaltic – Non Timed
Drain pumpYes
Water supply pressure1 to 6 Bar
Body ConstructionSingle Skin
Door/Hood ConstructionDouble Skin
Scrap TraysYes
Internal Rinse Booster PumpYes
Number Of Cycles6
Total Maximum Load(as supplied)6.7kW(30A) – Single Phase
