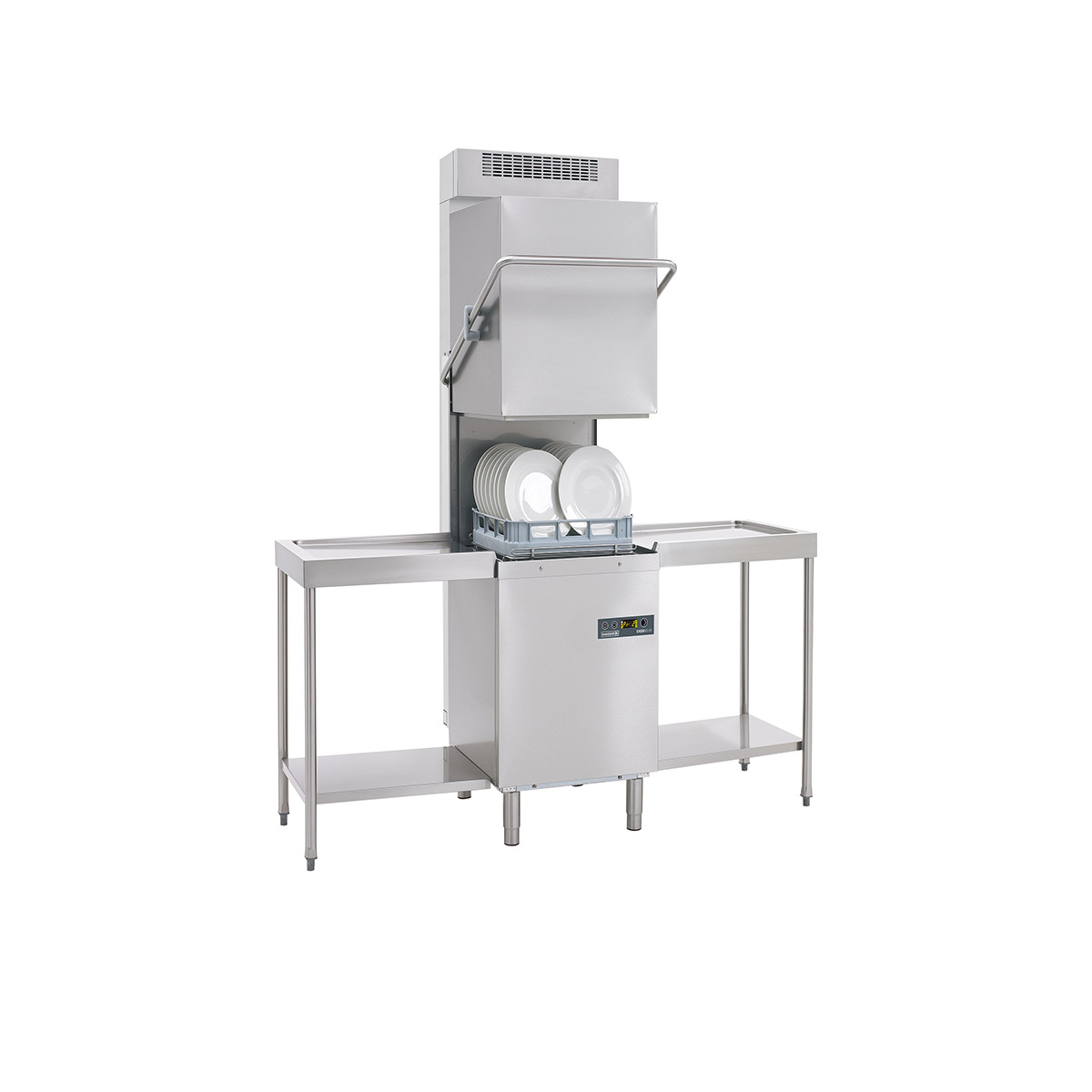

Maidaid Halcyon Passthrough Dishwasher C1035WSHR

£ 5,399.99 inc. VAT

2 Year Warranty

Warranty: Installation & repair by unauthorised technicians and the use of non-original parts immediately voids the warranty.

SKU: C1035WSHR Categories: , ,

Key Points:

  • 2 year warranty
  • HEAT RECOVERY
  • Up to 25% less power required to heat rinse water
  • HR module supplied seperately with simple bolt on instructions
  • Reduces need for extraction hood and improves working environment
  • Type AA breaktank
  • Internal automatic water softener
  • Bright LED display with soft touch controls
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Drain pump fitted as standard
  • Patented DUAL flow wash pump, reduced power while retaining wash efficiency
  • Three selectable cycle options plus special application cycles options
  • Cycle times between 70 & 240 secs, including special cycles
  • Cycle times can be tailored to site requirements
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Automatic self-cleaning cycle at end of service
  • Surface scrap tray filters
  • Operational self-diagnostics
  • Twin traffic light display indicates machine status
  • Supplied with one pegged plate, one open rack and cutlery basket
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 78°C (adjustable)
  • Can be supplied 3 phase



Technical Data:

C Range HoodC1035WS + Heat Recovery
Width x Depth x Height mm635 x 745 x 1985mm
Feet Height165mm to 220mm
Basket size500 x 500mm
Maximum useable height380mm
Door Opening405mm
Cycle times70/110/150 Seconds
Water consumption per cycle2.5 Litres
Wash tank capacity15 Litres
Phase – OptionsSingle/3-Phase
Power – Single Phase Options4.5kW(20Amp),6.5kW(30Amp)
Power – Three Phase6.5kW(16Amp)
Detergent pumpPeristaltic – Non Timed
Rinse aid pumpPeristaltic – Non Timed
Drain pumpYes
BreaktankYes
Water supply pressure1.5 to 6 Bar
Body ConstructionSingle Skin
Door/Hood ConstructionSingle Skin
Scrap TraysYes
Internal Rinse Booster PumpYes
Number Of Cycles4
Total Maximum Load(as supplied)6.5kW(30A) – Single Phase
