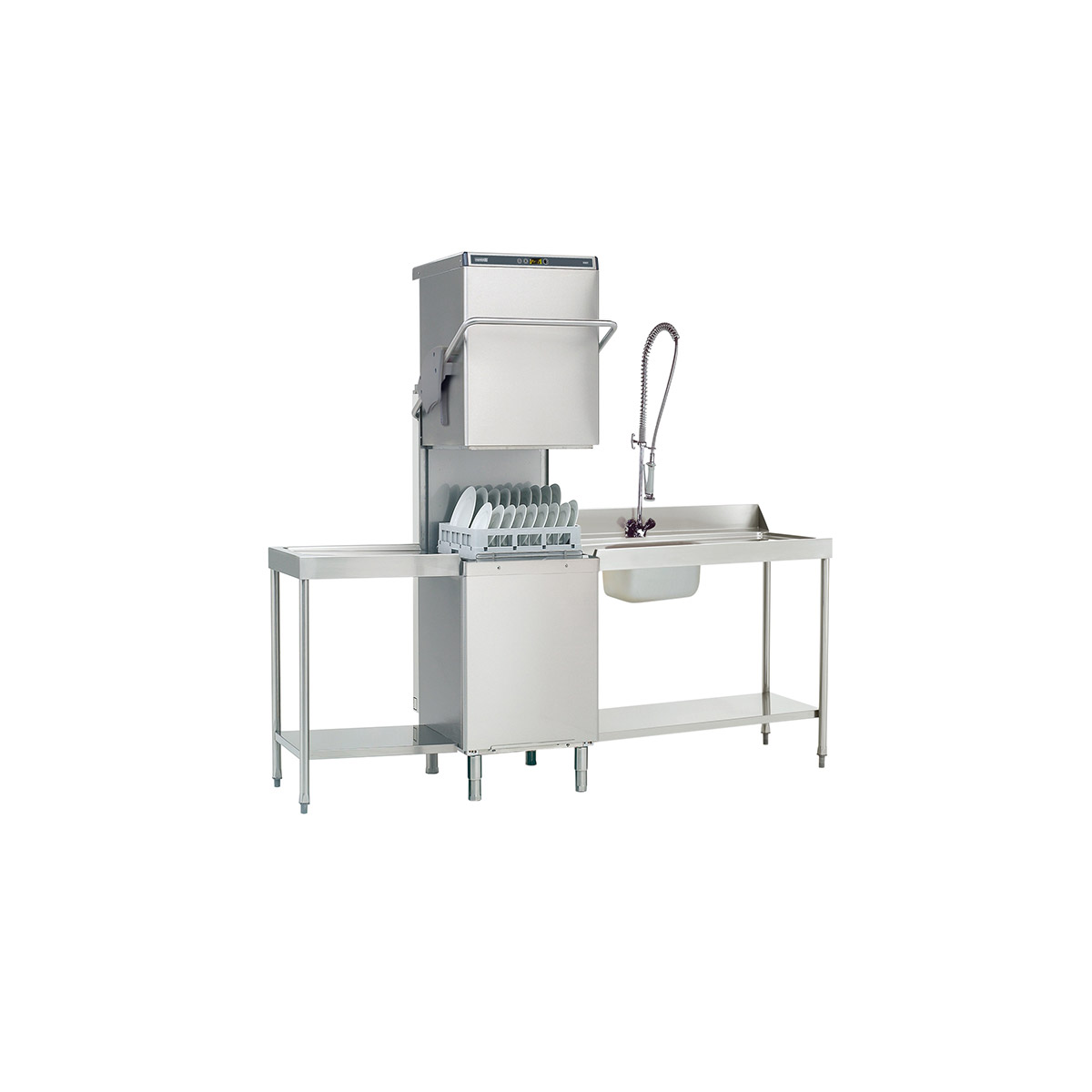

Maidaid Halcyon Passthrough Dishwasher D2021

£ 3,399.99 ex VAT

2 Years Warranty

SKU: D2021 Categories: , ,

Key Points:

  • 2 year warranty
  • Type AA breaktank
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Drain pump fitted as standard
  • Moulded wash tank designed for easy cleaning and reduced water usage
  • Low running costs due to improved rinse efficiency
  • Surface scrap trays as standard
  • Soft touch controls with bright LED display
  • Twin traffic light display indicates machine status
  • Three selectable cycle options plus special application cycle options
  • Cycle times between 60 & 240 secs, including special cycles
  • Selectable GLASS cycle for glass washing
  • Selectable GREEN cycle for minimum energy usage
  • Automatic self-cleaning cycle
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 78°C (adjustable)
  • Can be supplied 3 phase



Technical Data:

D Range Hood D2021
Width x Depth x Height mm 635 x 755 x 1375mm
Feet Height 165mm to 220mm
Basket size 500 x 500mm
Maximum useable height 440mm
Door Opening 475mm
Cycle times 60/90/120 Seconds
Water consumption per cycle 2.3 Litres
Wash tank capacity 20 Litres
Phase – Options Single/3-Phase
Power – Single Phase Options 4.7kW(20Amp),6.7kW(30Amp)
Power – Three Phase 6.7kW(16Amp)
Detergent pump Peristaltic – Non Timed
Rinse aid pump Peristaltic – Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 1 to 6 Bar
Body Construction Single Skin
Door/Hood Construction Single Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 6
Total Maximum Load(as supplied) 6.7kW(30A) – Single
