In stock

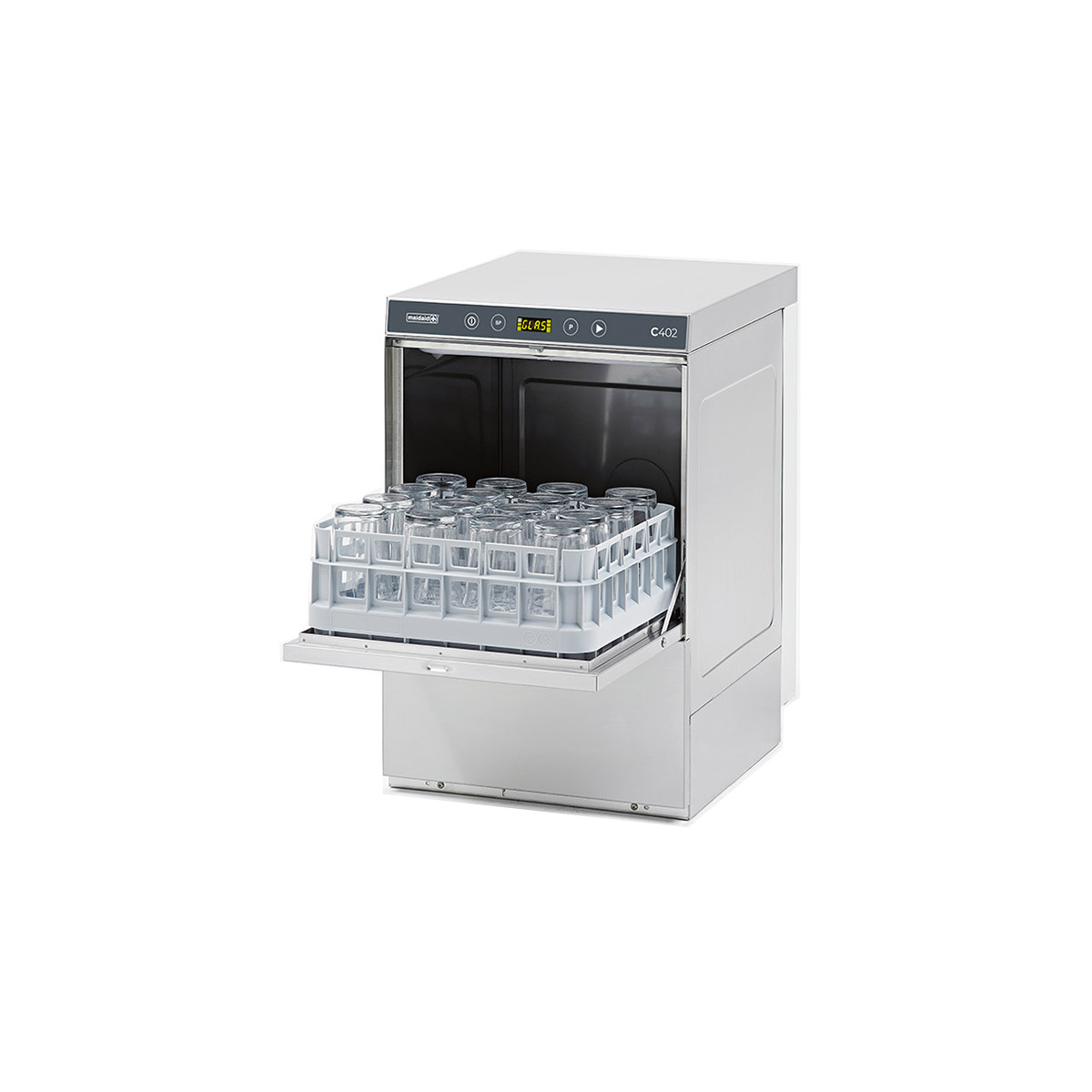

Maidaid Halcyon Glasswasher C402

£ 999.00 ex VAT

1 Year Parts & Labour Warranty

SKU: C402 Categories: , ,

Key Points:

  • 2 year warranty
  • NEW Dual flow wash pump
  • NEW Parallel quick release wash & rinse arm design
  • NEW Surface scrap trays supplied as standard
  • NEW Alarms menu
  • NEW Molded wash tank for easy cleaning
  • NEW Molded rack guide giving partial double skin
  • Supplied with two open cup/glass racks
  • Drain pump available
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Three selectable cycle options
  • Cycle times can be tailored to site requirements
  • Cycle times between 70 & 240 secs
  • Selectable energy saving mode
  • Automatic self-cleaning at end of service
  • Selectable thermostop ensures optimum rinse temperatures
  • Operational self diagnostics
  • Bright LED display with soft touch controls
  • Twin traffic light display indicate machine status
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 65°C (adjustable)



Technical Data:

C Range – Undercounter C402
Width x Depth x Height mm 440 x 540 x 665mm
Feet Height 5mm-15mm
Basket size 390x390mm
Maximum useable height 300mm
Door Opening 320mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.9 Litres
Wash tank capacity 10 Litres
Phase – Options Single Phase Only
Power – Single Phase Options 2.8kW(13Amp)
Power – Three Phase N/A
Detergent pump Peristaltic-non timed
Rinse aid pump Peristaltic-non timed
Drain pump Optional
Breaktank No
Water supply pressure 2 to 4 Bar
Body Construction Partial Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump N/A
Number Of Cycles 3
Total Maximum Load(as supplied) 2.8kW(13Amp) Single Phase
